ICST Ambisonics Plugins v3.2

Now Available!

Download:
🔗 GitHub Releases
(https://github.com/schweizerweb/icst-ambisonics-plugins/releases

What’s New in v3.2?

We’re pleased to announce ICST Ambisonics Plugins v3.2, featuring a major update to the Multi-Decoder, new user interface layouts, enhanced filter options, improved OSC control, and numerous workflow improvements based on ongoing empirical research at ICST.

📖 Full Documentation:
🔗 [Wiki](https://github.com/schweizerweb/icst-ambisonics-plugins/wiki

ICST AmbiDecoder v3.2

New Features & Improvements

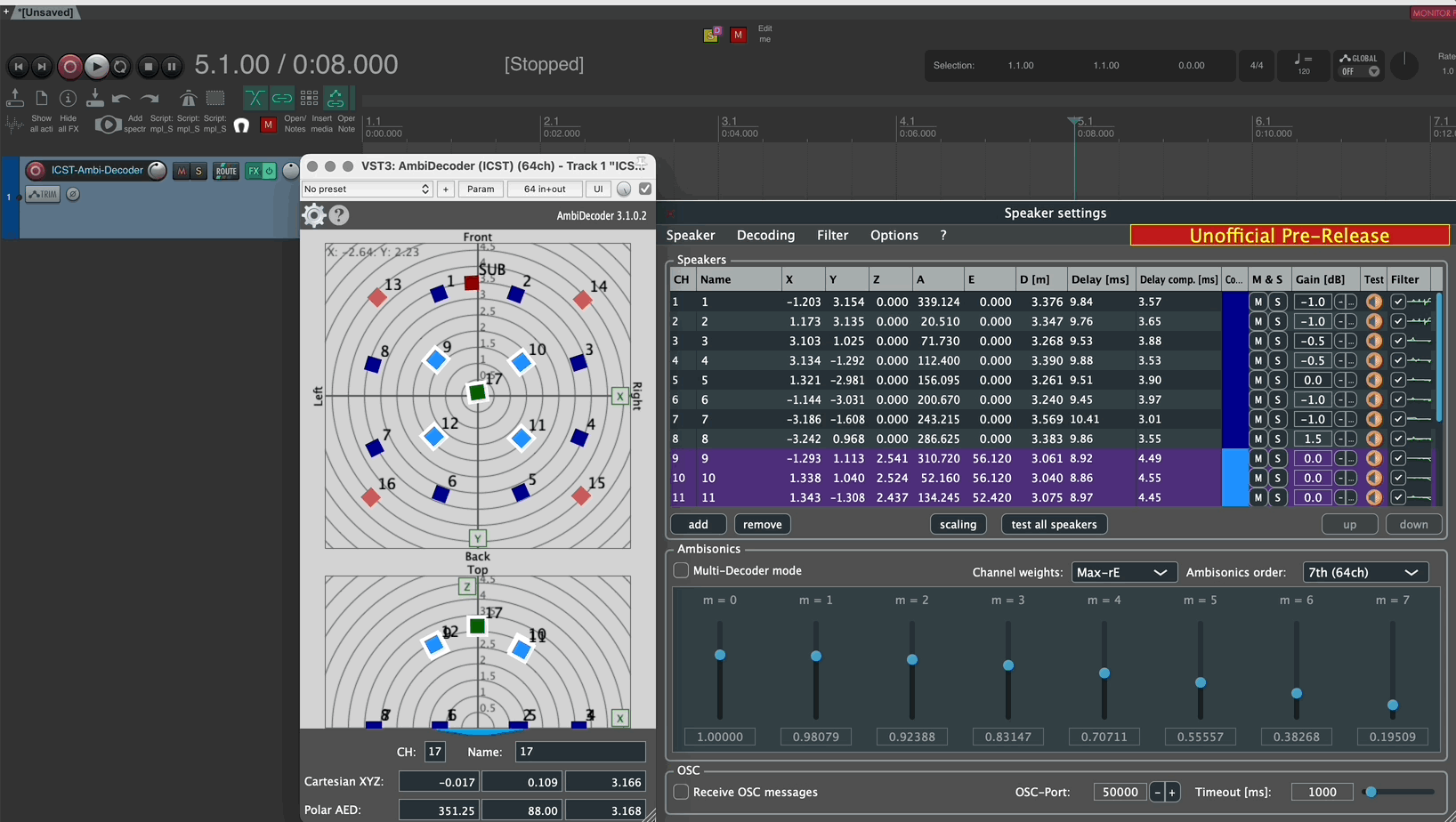

Bidirectional Solo & Mute

  • Easily solo or mute individual loudspeakers or groups.

  • Keyboard shortcuts (macOS):
    Shift + Control + S / Shift + Control + M

    bidi_mute

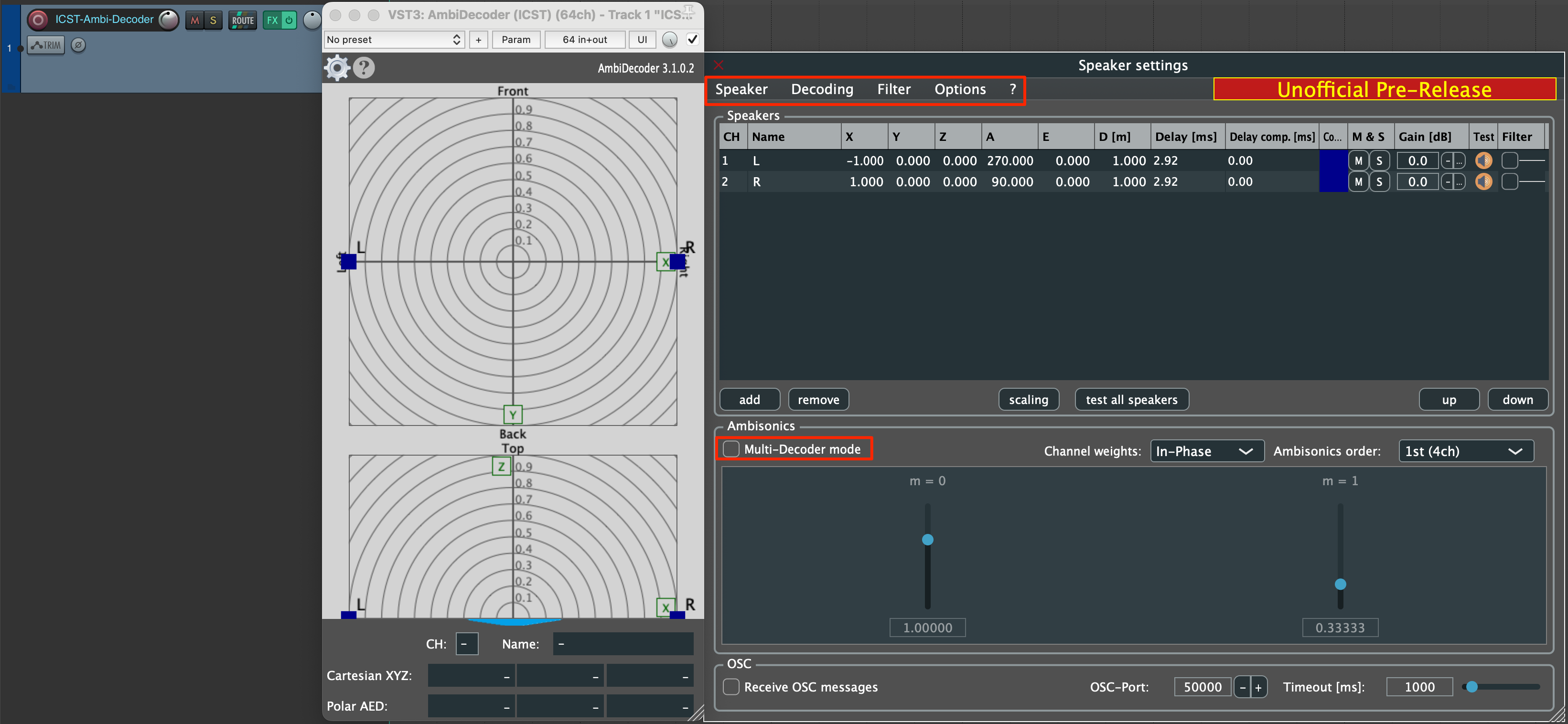

Redesigned Layout

A clearer and more modular structure:

  • Speaker Settings
  • Decoder Settings
  • Filter Options
  • Additional Features (coming soon) New_layout

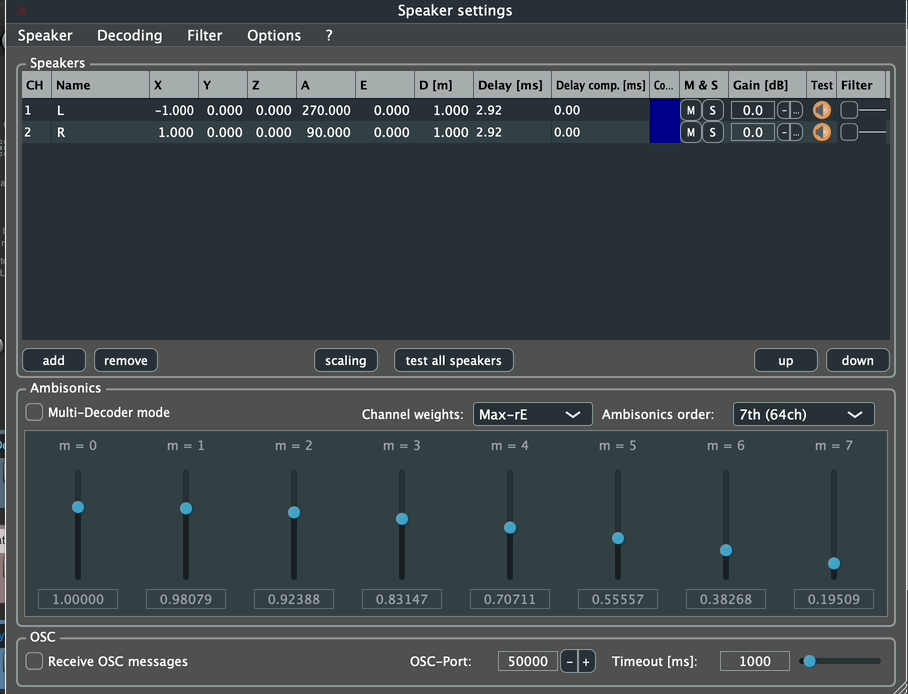

New CSV Export & Preset Management

  • Export speaker coordinates to CSV for use in Max (and vice versa).
  • Backup and export all presets as XML.
  • Import preset backups directly.

CSV

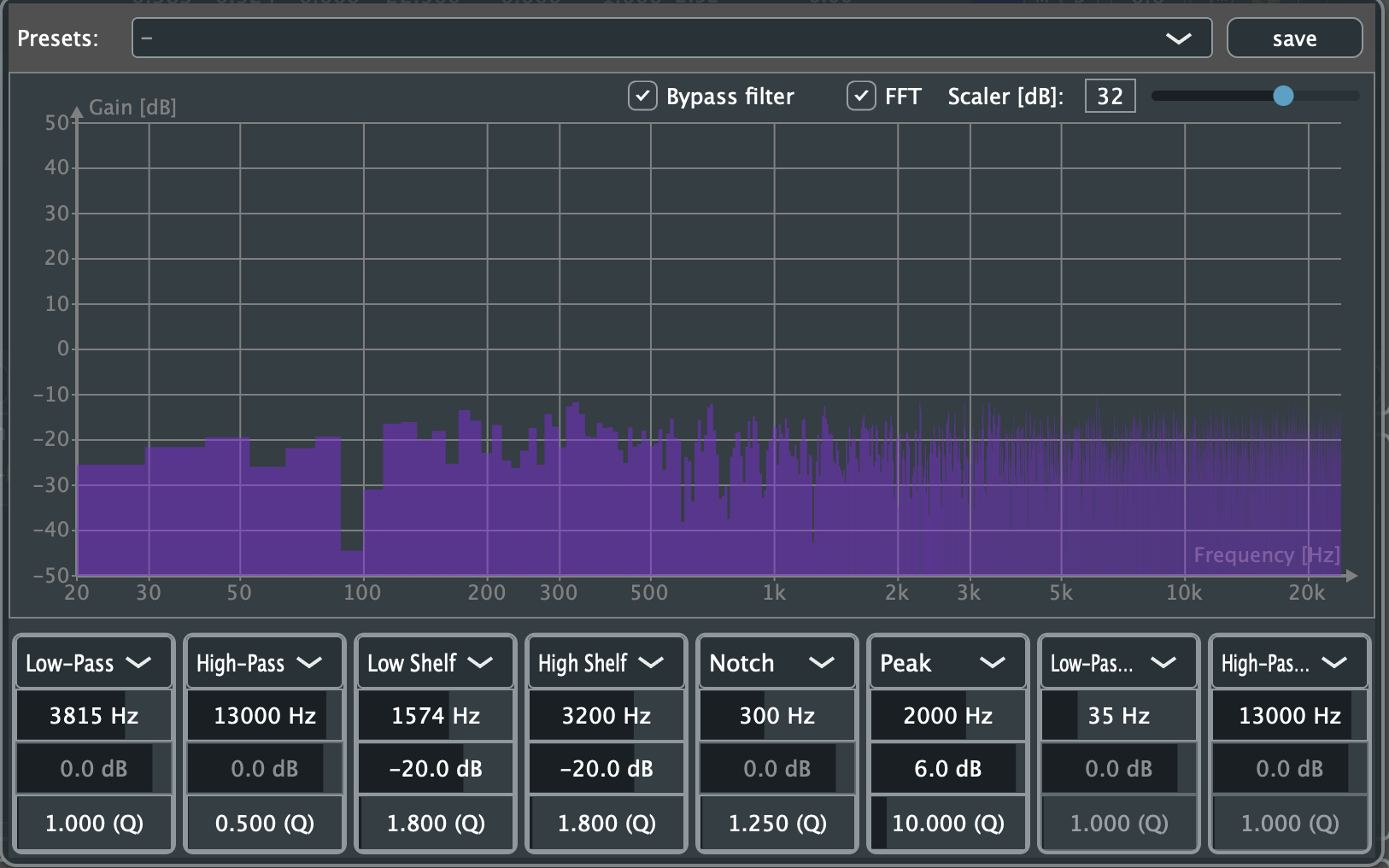

Improved Filter Interface

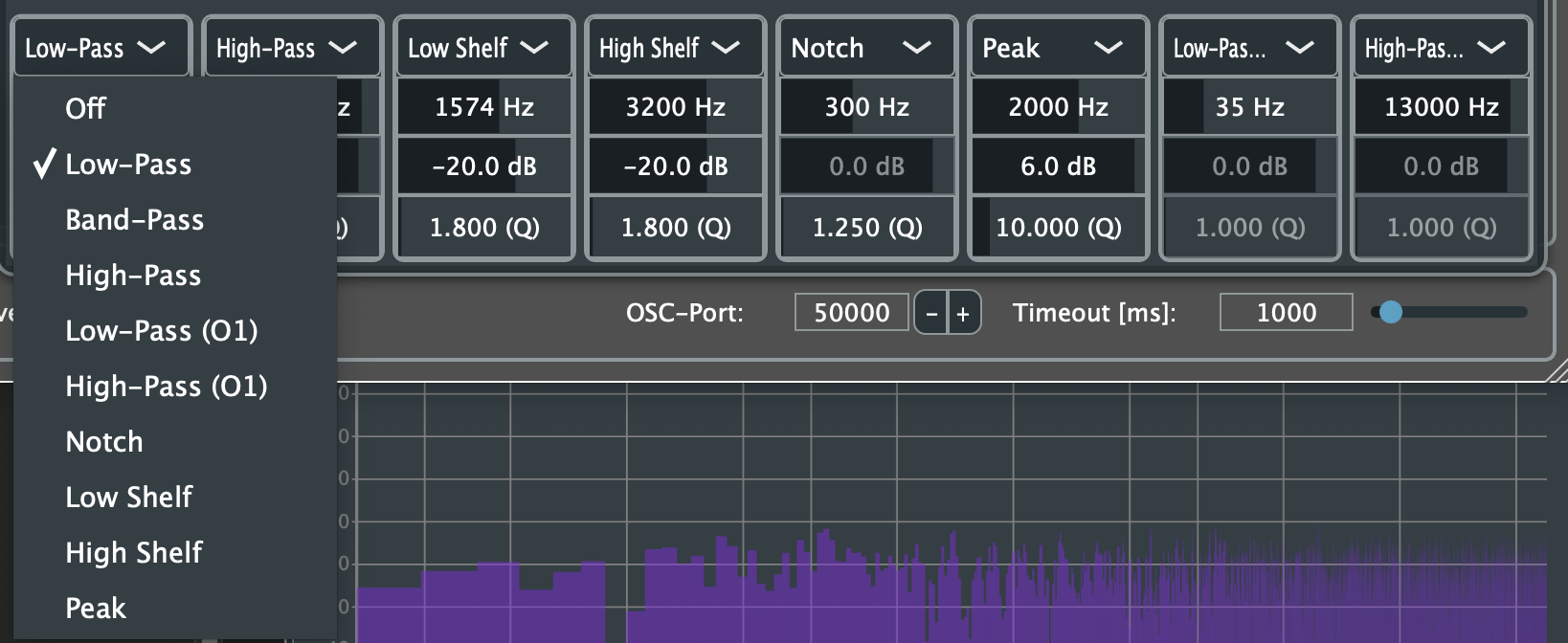

  • Eight new filter options

  • Updated UI for easier comparison and tuning

    filters filter UI

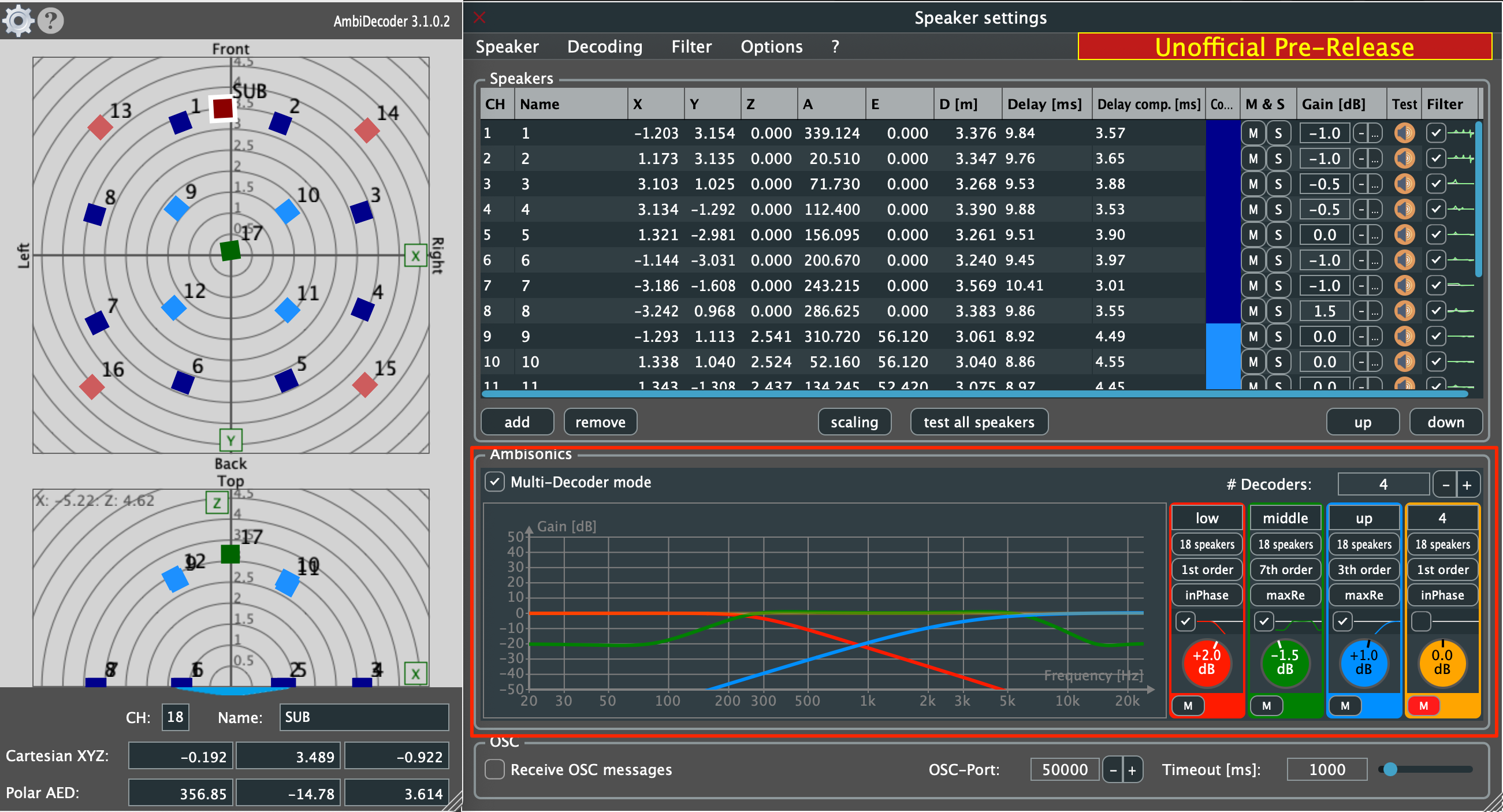

New Multi-Decoder Mode

  • Four fully independent decoders
  • Custom names and colors
  • Per-decoder loudspeaker selection
  • Independent Ambisonics order, weighting, filters, mute, and gain
  • Precise spatial tuning for complex arrays

📖 Multi-Decoder Tutorial: (coming soon) 💡 For more details, visit the Wiki.

MultiDecoder

New Project-templates

  • ICST_AmbiPlugins_MonoEncoder
  • ICST_AmbiPlugins_MultiEncoder

New Track Templates

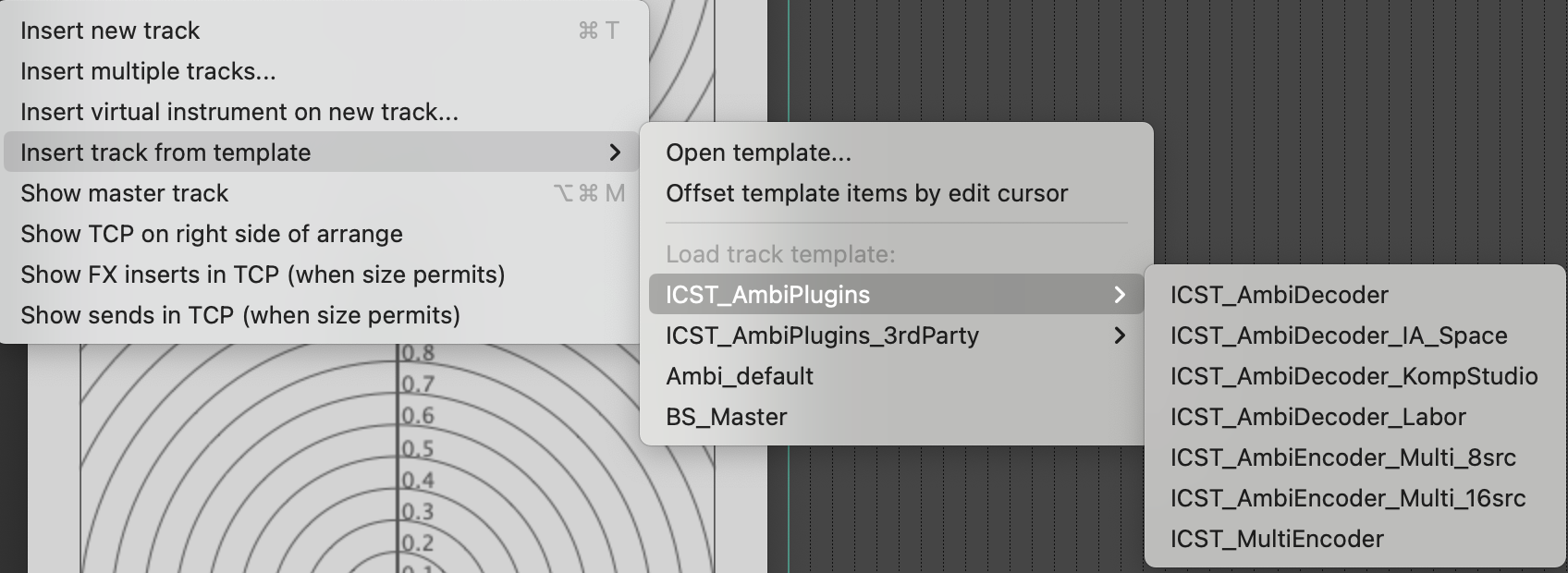

  • ICST AmbiPlugins ICST | 400

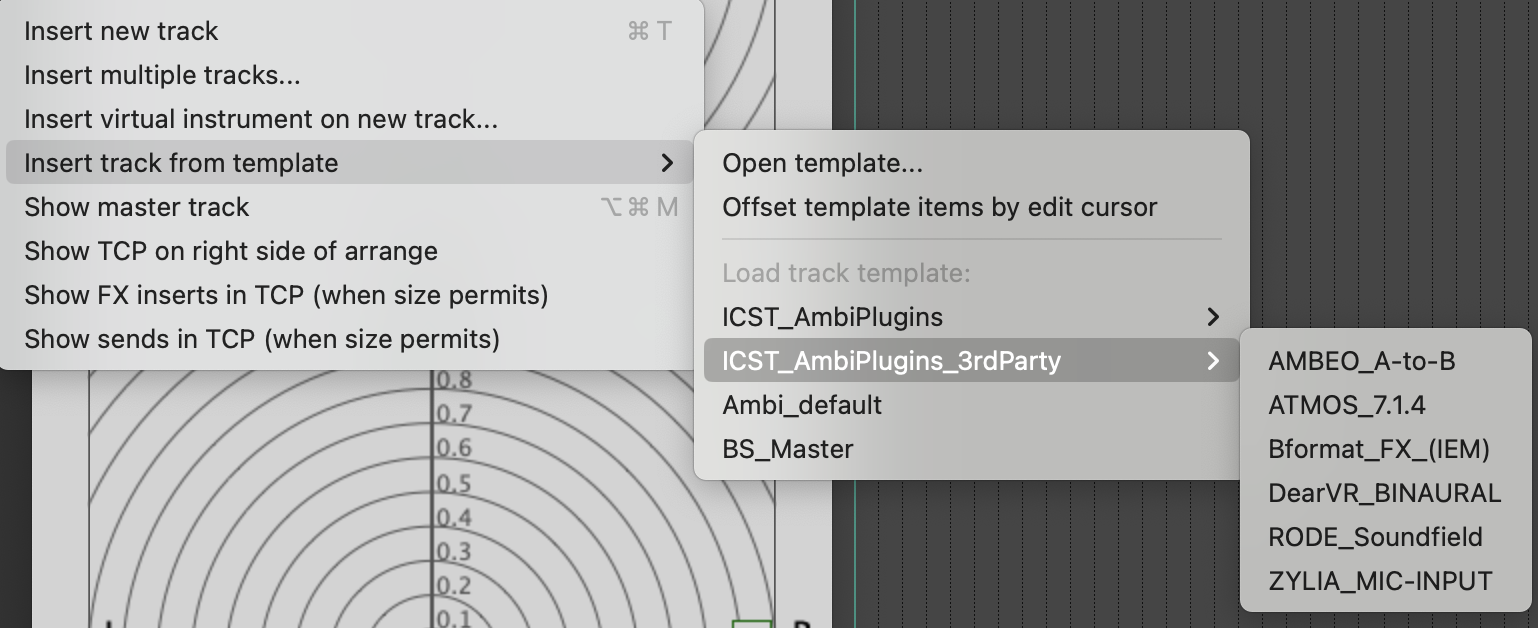

  • ICST AmbiPlugins 3rdParty 3rdParty | 400

ICST AmbiEncoder v3.2

New Features & Layout

  • New tap-based layout structure
  • Ambisonics order selector
  • Bidirectional solo & mute

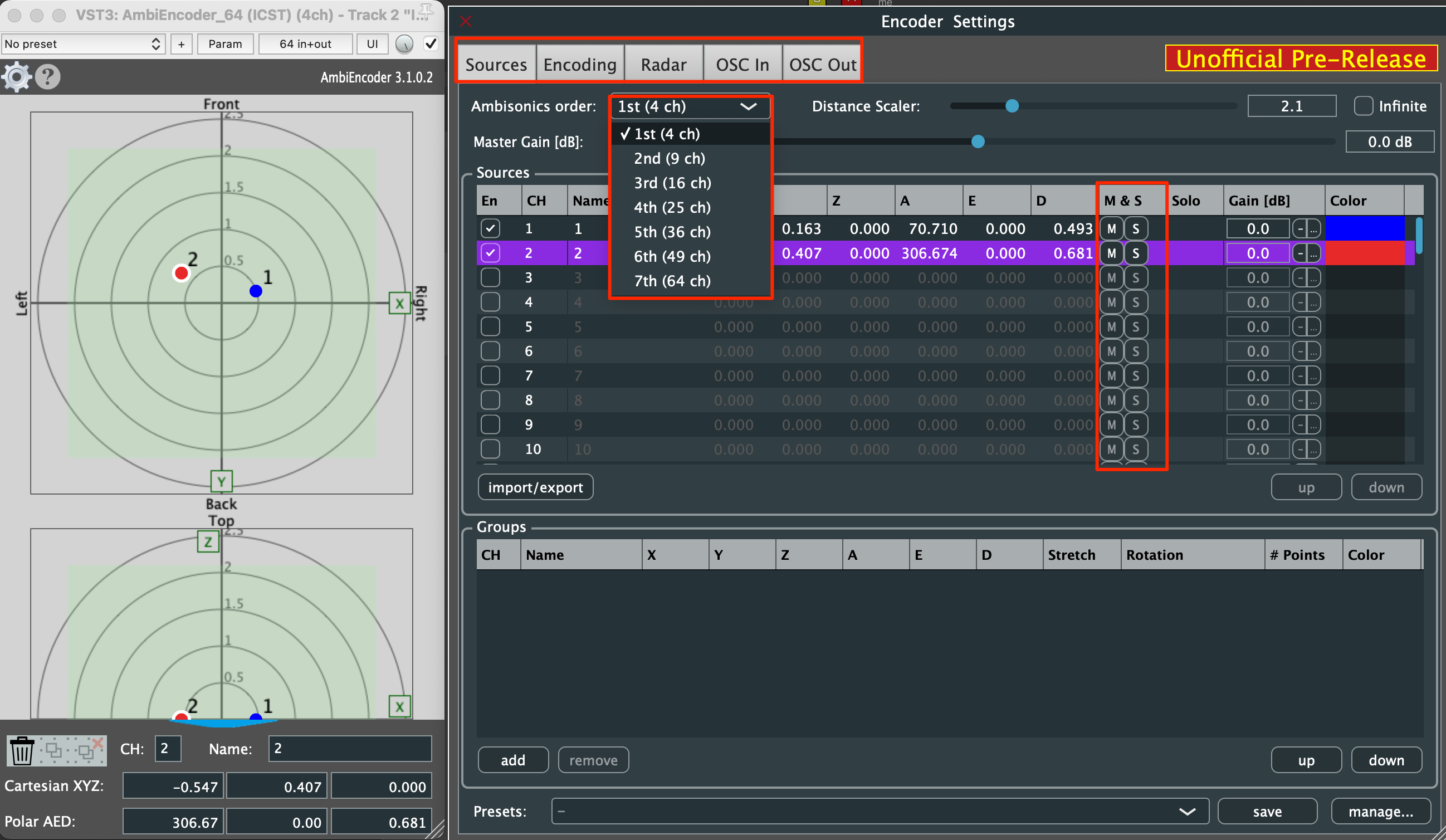

Enc_layout 🔹 Example: Layout

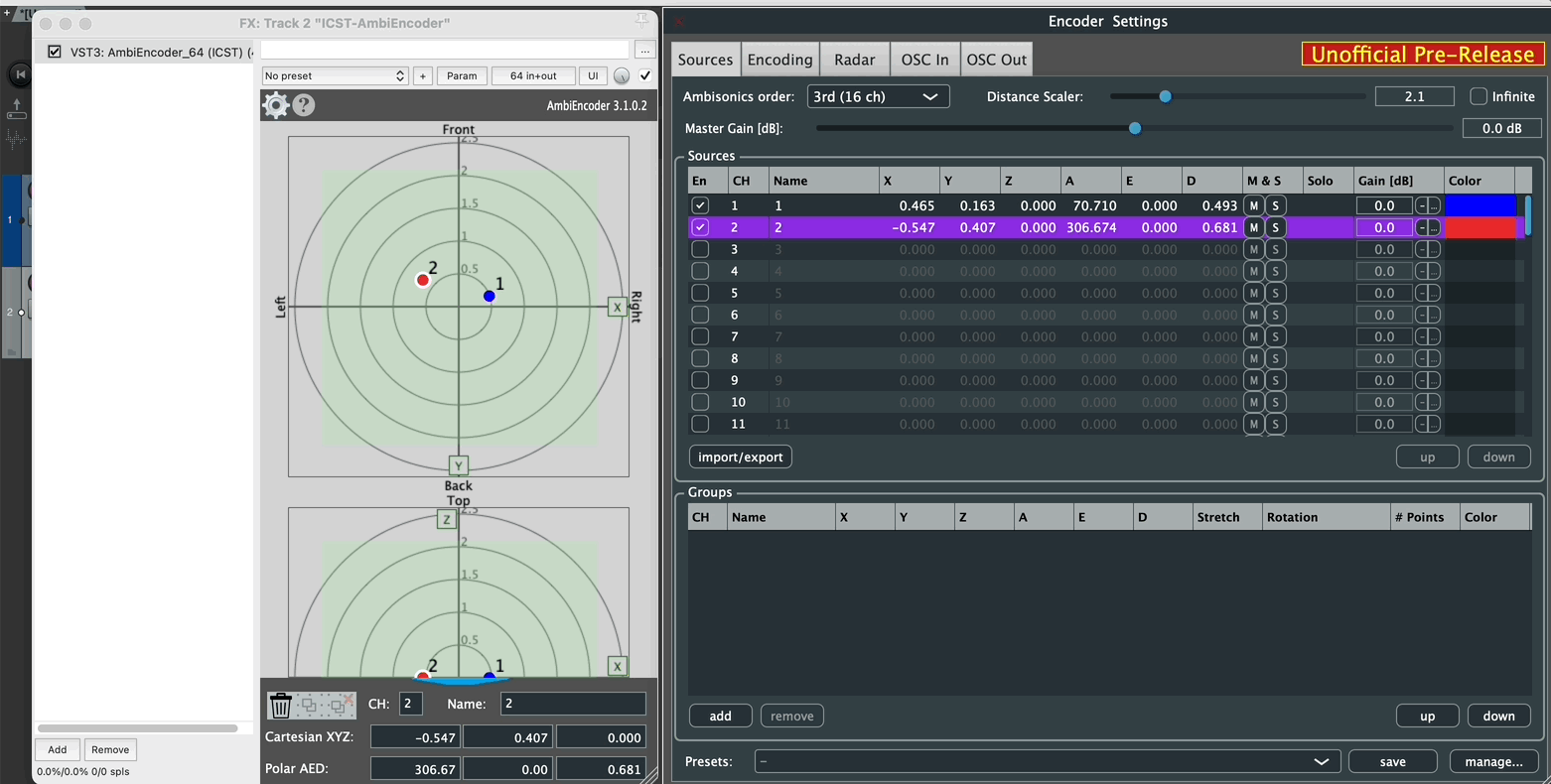

Enc_M_S 🔹 Example: Mute & Solo (bidirectional)

OSC Control

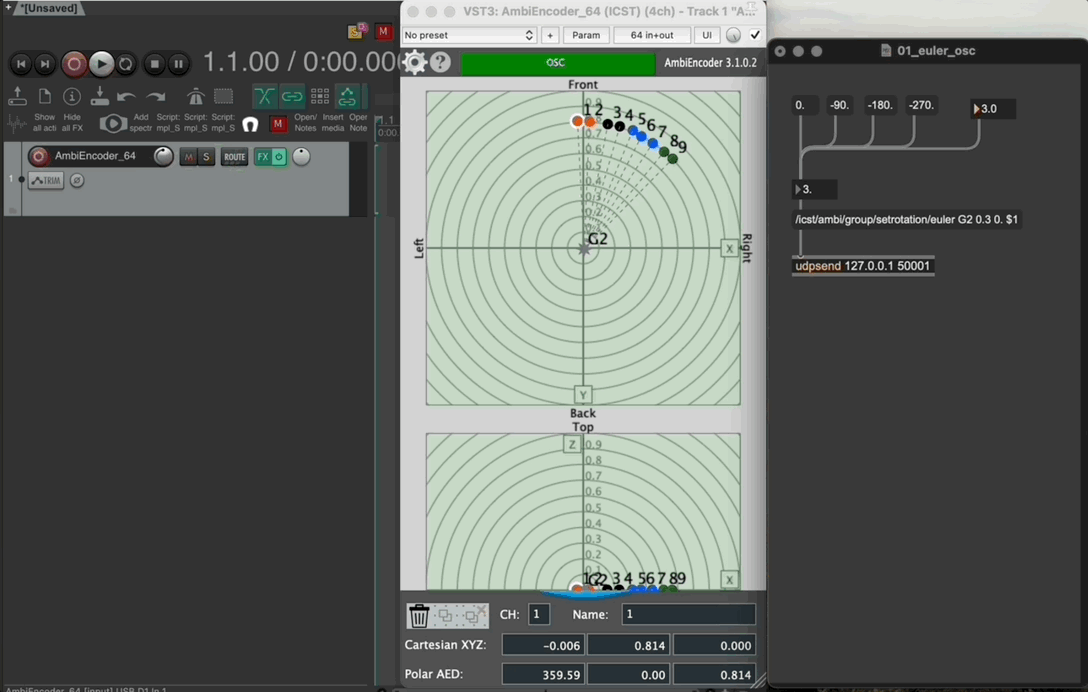

Control groups via OSC using absolute Euler angles:

  • Activate OSC input (e.g., 50001)
  • Send absolute angles from external tools (Max, TouchDesigner, etc.)
  • Smooth, precise rotation and movement of encoded sources

absolut_angel 🔹 Example: OSC from Max 9.0+ to ICST AmbiEncoder

💡 For more details, visit the Wiki.

Bug Fixes

  • Decoder audio output initialization fixed
  • Radar frame visibility issue resolved
  • Point label flipping corrected
  • Crash caused by closing OSC windows in the wrong order resolved
  • Updated the tutorial link in the Help section
  • Speaker test updated: White-Noise → Pink-Noise
