Overview ICST Ambisonics Plugins 2.1

Institute for Computer Music and Sound Technology / (ICST) Zurich University of the Arts

Developer - team: Christian Schweizer / Martin Neukom / Johannes Schuett
Free download here: Downloads

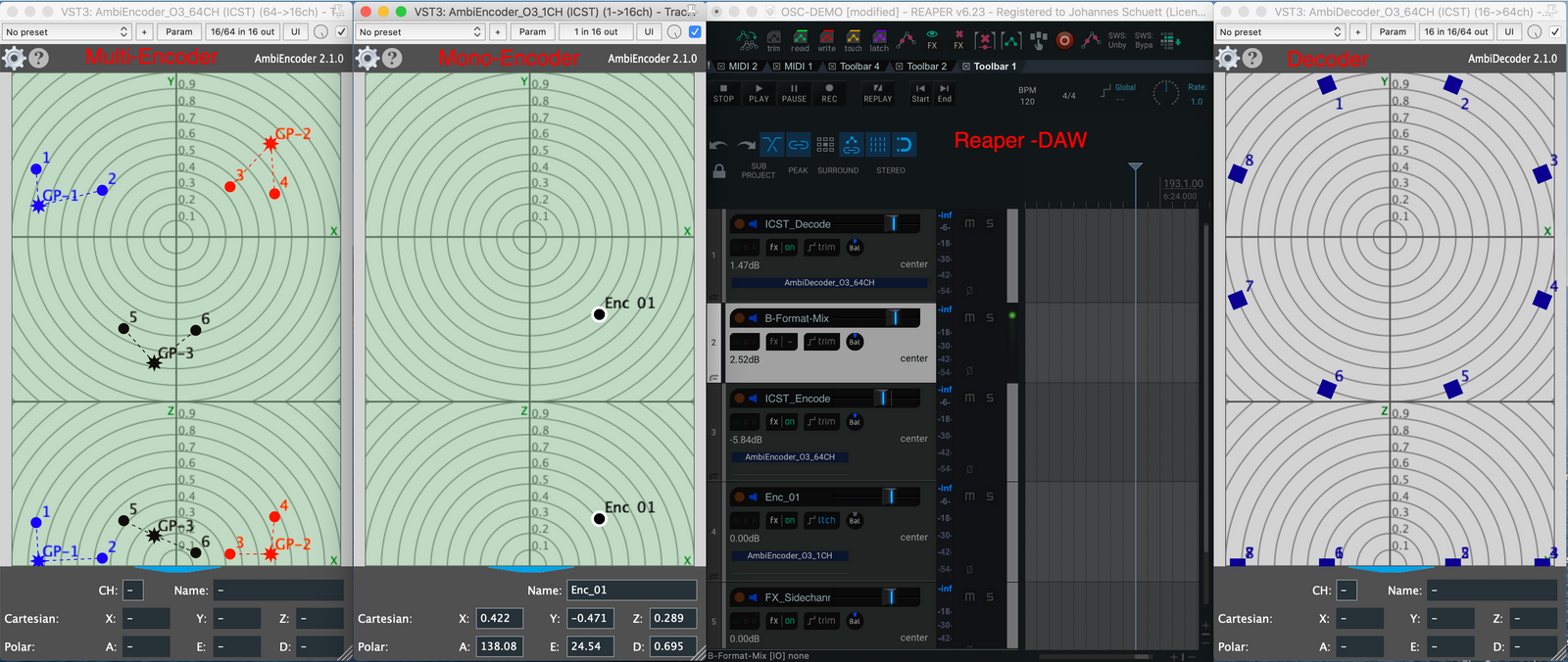

Overview ICST Ambisonics Multi-Encoder.vst3, ICST Ambisonics Mono-Encoder.vst3 and the ICST Ambisonics Decoder.vst3 [version.2.1] hosted by Reaper-DAW.
Figure: Overview ICST Ambisonics Multi-Encoder.vst3, ICST Ambisonics Mono-Encoder.vst3 and the ICST Ambisonics Decoder.vst3 [version.2.1] hosted by Reaper-DAW.

Content of the ICST Ambisonics Plugins Bundles


ICST Ambisonics Plugins consists of the following components:
  • AmbiDecoder Plugins 1st to 7th order
  • AmbiEncoder Plugins 1st to 7th order with mono-input (1 channel)
  • AmbiEncoder Plugins 1st to 7th order with multi-input (up to 64 channels)
Currently the following plugin bundles are available (64-bit universal binary):
  • OSX: ICST_AmbiPlugins_2.1_osx (VST3 and AU)
  • Windows: ICST_AmbiPlugins_2.1_win_x64 (VST3 only)
  • Linux: ICST_AmbiPlugins_VST3_2.1_linux.zip
Hier finden sie alle nötigen Informationen zum Realease 2.1:

Further general information can be found in this chapter: Overview ICST Ambisonics Plugins

What's new in version 2.1
  • ICST Ambisonics Decoder:
    • New speaker settings manager in the decoder.
    • Redesign of the filters in the decoder.
    • New thumbnail view of active filters in speaker settings.
    • New speaker setting - manager in the decoder with selective choice possibility.
    • CSV import/export
    • Many default speaker settings have been added as presets.
  • ICST Ambisonics Multi-Encoder
    • New OSC manager in the multi-encoder with a scaling option
    • Doppler was added
    • Low-pass filter for air-absorption simulation, depending on distance, has been implemented.
    • also look here: Spezifikation

Warning: Please do not change from or to Infinite when Enable Doppler is activated!
BUG: this produces a loud click sound
Solution: First switch off the Doppler!


<<Content -- Decoder_v2.1>>
